    MDD辰达行肖特基二级管1N5817S

    介绍：

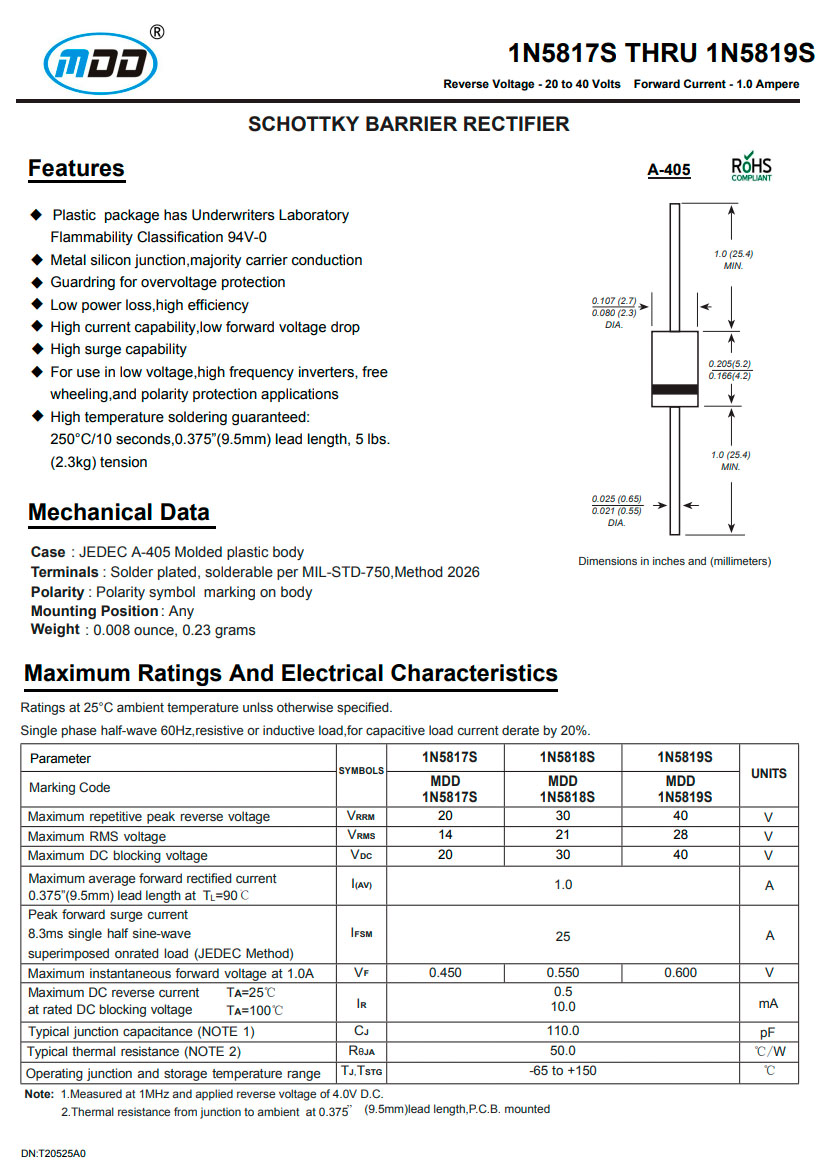

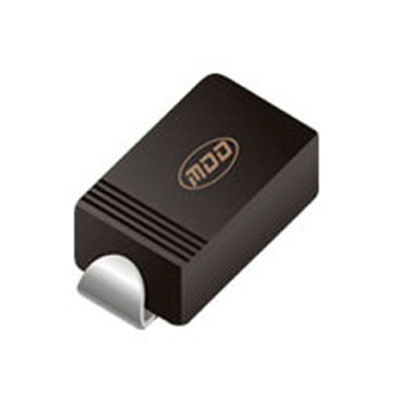

    MDD辰达行肖特基二级管1N5817S

    Features
    Plastic package has Underwriters Laboratory
    Flammability Classification 94V-0
    Metal silicon junction,majority carrier conduction
    Guardring for overvoltage protection
    Low power loss,high efficiency
    High current capability,low forward voltage drop
    High surge capability
    For use in low voltage,high frequency inverters, free wheeling,and polarity protection applications
    High temperature soldering guaranteed:
    250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

    Mechanical Data

    Case : JEDEC A-405 Molded plastic body
    Terminals : Solder plated, solderable per MIL-STD-750,Method 2026

    Polarity : Polarity symbol marking on body
    Mounting Position: Any
    Weight : 0.008 ounce, 0.23 grams
